RTBT-RN
EagleBurgmann BT-RN series Replacement
RTBT-RN is conical spring and O-ring pusher construction mechanical seals,designed for large batch production. This type of mechanical seal is easy to install. covers a wide range of applications and reliable performance. It is widely used in paper industry,sugar industry, chemical and petroleum, food processing, sewage treatment industry.
Features
Conical spring,unbalanced,O-ring pusher construction
Torque transmission via conical spring, independent of direction of rotation
Wide option in seal face material
Spring with deep coils to reduce the risk of clogging in solids content or viscous liquids
Recommended Applications
Paper and sugar industry,Food Processing,waste water technology
Low solids content or viscous media
Sewage pumps, chemical pumps, screw pumps, process pumps
Other Rotating Equipment
Operating range
Shaft diameter: d1=8…100 mm
Pressure: p=0…1.0Mpa（145psi）
Temperature: t = -40 °C ..+200 °C(-40°F to 392°F)
Sliding velocity: Vg≤15m/s（49.2ft/m）

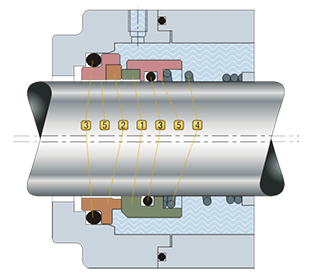

Product Structure
Combination Materials
1.Rotary Face
Silicon carbide (RBSIC) O
Tungsten carbide W1
Cr-Ni-Mo Sreel (SUS316) G
Tungsten carbide surfacing I
2.Stationary Seat
Carbon graphite resin impregnated Ak
Silicon carbide (RBSIC) O
Tungsten carbide W1
3.Auxiliary Seal
Nitrile-Butadiene-Rubber (NBR) P
Fluorocarbon-Rubber (Viton) V
Ethylene-Propylene-Diene (EPDM) E
Fluorocarbon-Rubber (Viton) V
4.Spring
Stainless Steel (SUS304) F
Stainless Steel （SUS316) G
Left rotation: L Right rotation: R
5.Metal Parts
Stainless Steel (SUS304) F
Stainless Steel （SUS316) G
