RT6SB
Elastomer Bellows Mechanical Seal
Type RT6SB is the stationary mechanical seals, good perfromance in the high-speed or vibration working condition. Usually used in Generator pumps applications.
Features
Can be installed to various shaft sizes due to the clearance between the shaft and seal components
Single-Spring、unbalanced elastomer bellows mechanical seal
Recommended Applications
Water and waste water technology
Building service industry
Swimming pool pumps
Generator pumps
Operating range
Shaft diameter: d1=10…30mm
Pressure: p=0…0.3Mpa（43.5psi）
Temperature: t = -35 °C …150 °C(-31°F to 302°F)
Speed: n≤5000m/s

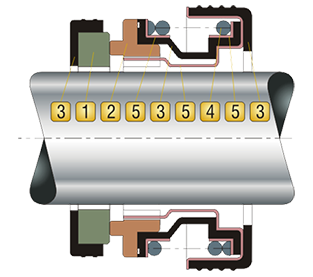

Product Structure
Combination Materials
1.Rotary Face
Aluminium oxide B
Silicon carbide (RBSIC) O
2.Stationary Seat
Carbon graphite resin impregnated Ak
Hot-pressing carbon Ac
Silicon carbide (RBSIC) O
3.Auxiliary Seal
Nitrile-Butadiene-Rubber (NBR) P
Fluorocarbon-Rubber (Viton) V
Hydrogenated nitrile-butadiene rubber(H-NBR) H
4.Spring
Stainless Steel (SUS304) F
Stainless Steel (SUS316) G
5.Metal Parts
Stainless Steel (SUS304) F
Stainless Steel (SUS316) G
