RT2100
John Crane Type2100 Replacement
Compact,single-spring,elastomer bellows mechanical seals Type 2100 provides maximum performance and efficiency. Wideky used in centrifugal,rotary and turbine pumps,compressors and other rotary equipment.
Features
Slingle Seal，easy installation and replacement
Innovative bellows design is pressure-supported and will not crease or fold under high pressure
Conform with DIN24960 EN12756 DIN24960，ISO3069 standard
Recommended Applications
Turbine pumps
Centrifugal pumps
Process pumps
Other Rotating Equipment
Operating range
Shaft diameter: d1=10…75mm(0.375” …3.000”)
Pressure: p=0…1.2Mpa（174psi）
Temperature: t = -20 °C …150 °C(-4°F to 302°F)
Sliding velocity: Vg≤13m/s（42.6ft/m）

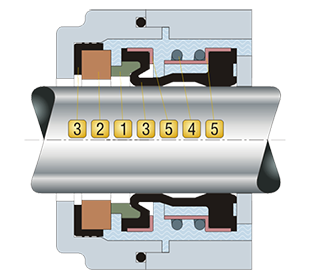

Product Structure
Combination Materials
1.Rotary Face
Carbon graphite resin impregnated Ak
Silicon carbide (RBSIC) O
Hot-Pressing Carbon Ac
2.Stationary Seat
Aluminium oxide(Ceramic) B
Silicon carbide (RBSIC) O
Tungsten carbide W1
3.Auxiliary Seal
Nitrile-Butadiene-Rubber (NBR) P
Fluorocarbon-Rubber (Viton) V
Ethylene-Propylene-Diene (EPDM) E
4.Spring
Stainless Steel (SUS304) F
5.Metal Parts
Stainless Steel (SUS304) F
