RT16
Pac-Seal Type 16 Replacement
Type RT16 series is whole structure of elastomer bellows mechanical seals, which provides easy installation. Reliable transmission due to special design in the hex-torque drive. It is frequently used by Small power circulating pump, centrifugal water pumps and swimming pools pumps. Type RT16 is widely used in the low-pressure industry, commerical and household equipment insudtry.
Features
Unique design in the hexagonal torque drive eliminates stresses on the elastomer bellows
Adjusting the torque distribution can reduce stress in the primary seal
Innovative bellows design is pressure-supported and will not crease or fold under high pressure
Recommended Applications
Centrifugal water pumps
Swimming pools pumps
Process pumps
Other Rotating Equipment
Operating range
Shaft diameter: d1=0.375” …1.000”
Pressure: p=0…1.0Mpa（145psi）
Temperature: t = -30 °C …180 °C(-22°F to 356°F)
Sliding velocity: Vg≤10m/s（42.6ft/m）

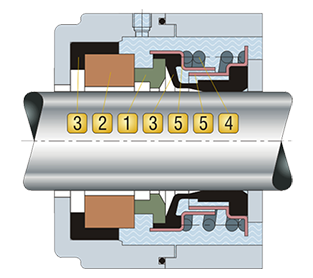

Product Structure
Combination Materials
1.Rotary Face
Carbon graphite resin impregnated Ak
Silicon carbide (RBSIC) O
Hot-Pressing Carbon Ac
2.Stationary Seat
Aluminium oxide(Ceramic) B
Silicon carbide (RBSIC) O
3.Auxiliary Seal
Nitrile-Butadiene-Rubber (NBR) P
Fluorocarbon-Rubber (Viton) V
Ethylene-Propylene-Diene (EPDM) E
4.Spring
Stainless Steel (SUS304) F
5.Metal Parts
Stainless Steel (SUS304) F
