Project Description

RT155

EagleBurgmann Type BT-FN Replacement

Mechanical seal type RT155 with conical spring and O-ring pusher construction, the metal parts produced by Stamping. competitive price and wide range of application have made the RT155 a mass-production seals.

Features

  • Conical spring,unbalanced,O-ring pusher construction

  • Torque transmission via conical spring, independent of direction of rotation.

  • Stamping construction in the metal parts

Recommended Applications

  • Centrifugal pump and clean water pump

  • Other Rotating Equipment

Operating range

  • Shaft diameter: d1=10…40mm

  • Pressure:  p=0…1.4Mpa（203psi）

  • Temperature: t = -40 °C …180 °C(-40°F to 356°F)

  • Sliding velocity:  Vg≤15m/s（49.2ft/m）

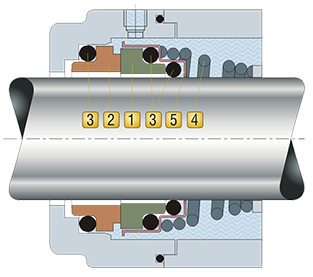

Product Structure

Combination Materials

1.Rotary Face

Silicon carbide (RBSIC) O
Aluminium Oxide Ceramic B

2.Stationary Seat

Hot-Pressing Carbon A
Carbon graphite resin impregnated Ak
Silicon carbide (RBSIC) O

3.Auxiliary Seal

Nitrile-Butadiene-Rubber (NBR) P
Fluorocarbon-Rubber (Viton) V
Ethylene-Propylene-Diene (EPDM) E

4.Spring

Stainless Steel (SUS304) F
Stainless Steel （SUS316) G
Left rotation: L Right rotation: R

5.Metal Parts

Stainless Steel (SUS304) F
Stainless Steel （SUS316) G

Notes: The range of preesure,temperature and sliding velocity is depend on seals combination materials
