Project Description
RT125
O-ring pusher construction mechanical
Single seal,O-ring pusher construction mechanical seals Type RT125 with a wide range of combination material options. It is frequently used in paper, textile printing, Chemical and sewage treatment industry.
Features
O-ring pusher construction
Independent of direction of rotation
Single seal, unbalanced
Low risk of clogging in solids content or viscous liquids
Recommended Applications
Textile printing, petrochemical industry and sewage treatment industry
Low solids content or viscous media
Printing and dyeing pumps、Sewage pumps and industrial pumps
Other Rotating Equipment
Operating range
Shaft diameter: d1=20…100mm
Pressure: p=0…1.2Mpa（174psi）
Temperature: t = -20 °C …180 °C（-4°F to 356°F）
Sliding velocity: Vg≤25m/s（82ft/m）

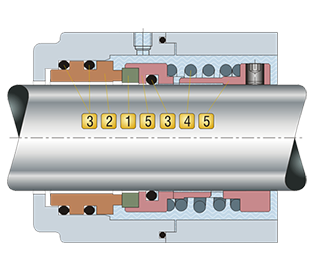

Product Structure
Combination Materials
1.Rotary Face
Silicon carbide (RBSIC) O
Tungsten carbide W1
2.Stationary Seat
Silicon carbide (RBSIC) O
Carbon graphite resin impregnated Ak
3.Auxiliary Seal
Fluorocarbon-Rubber (Viton) V
Ethylene-Propylene-Diene (EPDM) E
Silicone-Rubber（MVQ) S
Nitrile-Butadiene-Rubber (NBR) P
4.Spring
Stainless Steel (SUS304) F
Stainless Steel （SUS316) G
5.Metal Parts
Stainless Steel (SUS304) F
Stainless Steel （SUS316) G
