RT10T/10R
John Crane Mechanical seal Type 10T/10R Replacement
RT10T/10R is a complete externally mounted PTFE bellows mechanical seals for extreme corrosion resistance. It is ideal for uded in extremely corrosive applications such as high concentrations of acids, salts, strong oxidizing and reducing agents and chemically active organic compounds.
Features
PTFE bellows seals
Externally mounted，Independent of direction of rotation
Multiple spring, single seal ,balanced
Recommended Applications
Chemical and organic compounds industry
Extreme corrosion resistance media
Anticorrosive Pumps
Other Rotating Equipment
Operating range
Shaft diameter: d1=18…100mm(0.750” …4.000”)
Pressure: p=0…0.8Mpa（116psi）
Temperature: t = -20 °C …120 °C(-4°F to 248°F)
Sliding velocity: Vg≤13m/s（42.6ft/m）

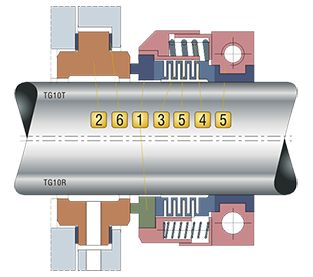

Product Structure
Combination Materials
1.Rotary Face
Silicon carbide (RBSIC) O
Carbon graphite resin impregnated Ak
Glass Filled PTFE Y
2.Stationary Seat
Surfacing Tungsten carbide I
Silicon carbide (RBSIC) O
Stainless Steel (SUS316) G
99% Aluminium Oxide B1
3.Bellowas
Composite PTFE Y1
4.Spring
Stainless Steel (SUS304) F
Stainless Steel (SUS316) G
5.Parts
Pure PTFE T
Stainless Steel (SUS316) G
